Characteristic:
Acid-resisting, alkali-resisting，heat resistant and anti-corrosion. Smooth surface, high filtering precision, can load high strength.
Applications:

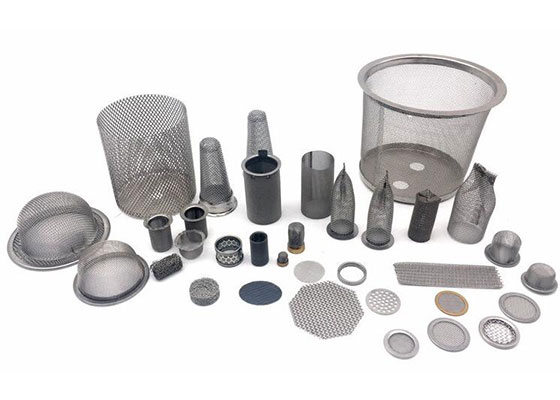

Screening and filtering. Widely used in mine, oil. chemical industry, food industry, pharmaceutical industry and machine-making etc

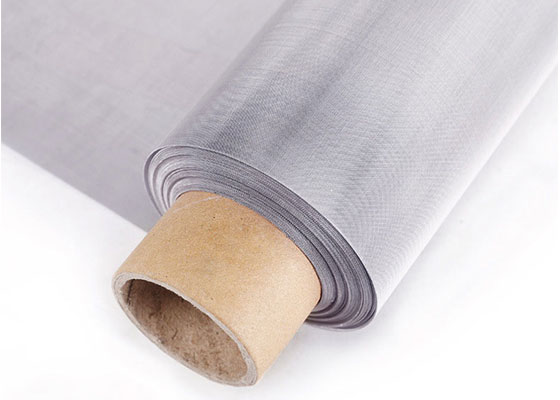

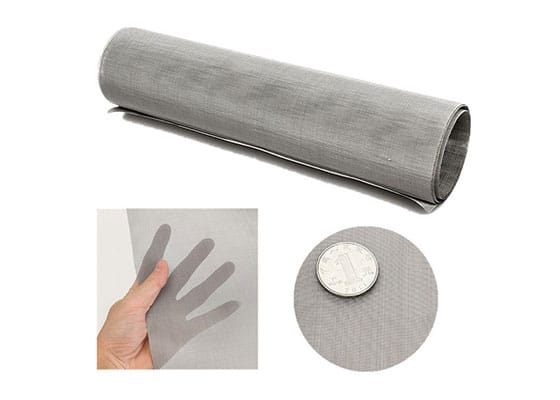

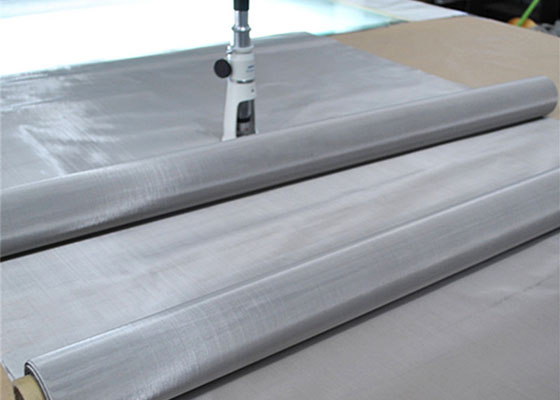

Specification of Plain/Twill Weave Stainless Steel Wire Mesh
| MESH | WIRE DIAMETER | APERTURE/OPENING | %OPEN AREA | ||
| INCH | MM | INCH | MM | ||
| 1×1 | .080 | 2.03 | .920 | 23.37 | 84.6 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 |

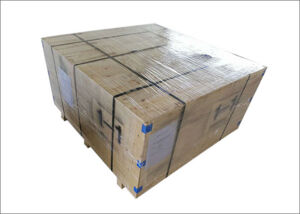

Package

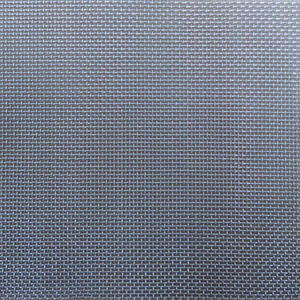

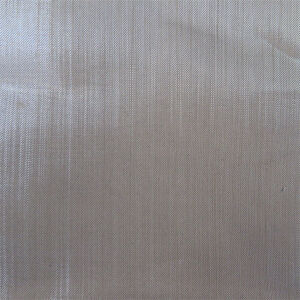

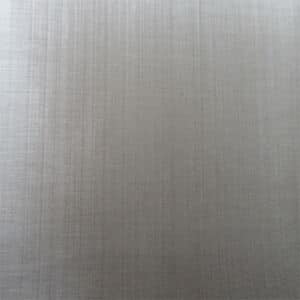

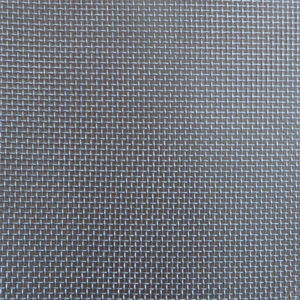

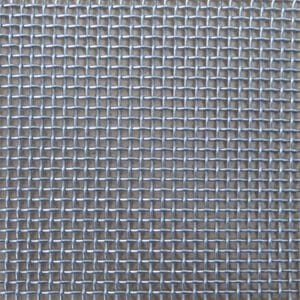

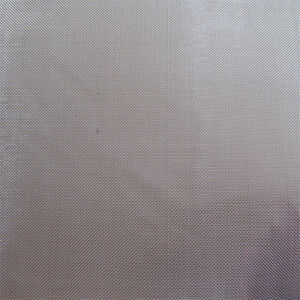

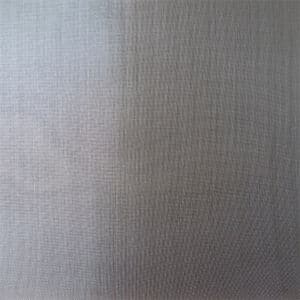

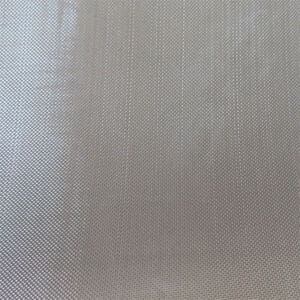

Mesh
